2026 Excel Boats Storm Cat 230

The Ultimate Cat Fishing Experience

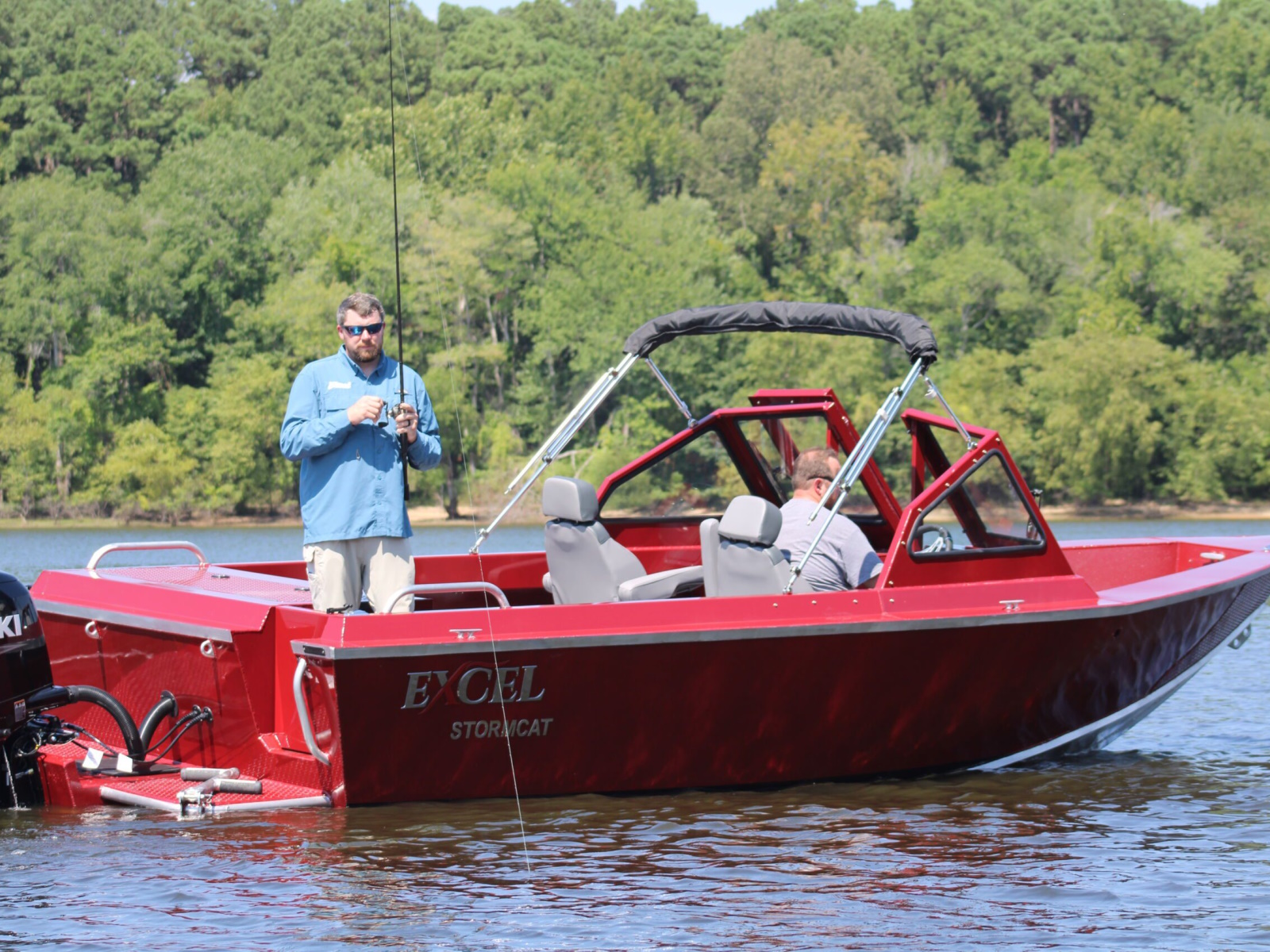

The 21’ Stormcat is built on our most advanced big water platform for the ultimate experience for recreational as well as competitive fishermen.

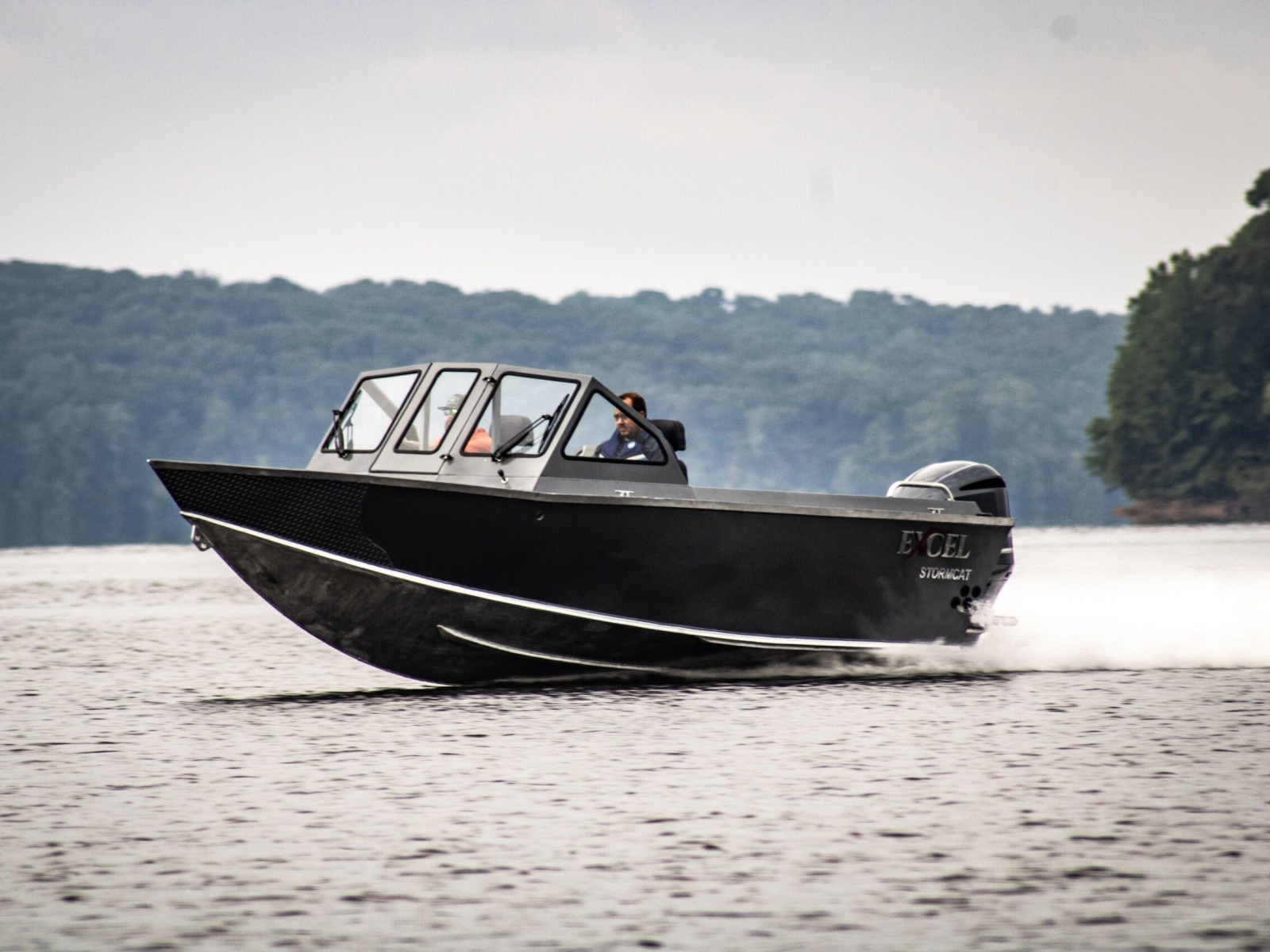

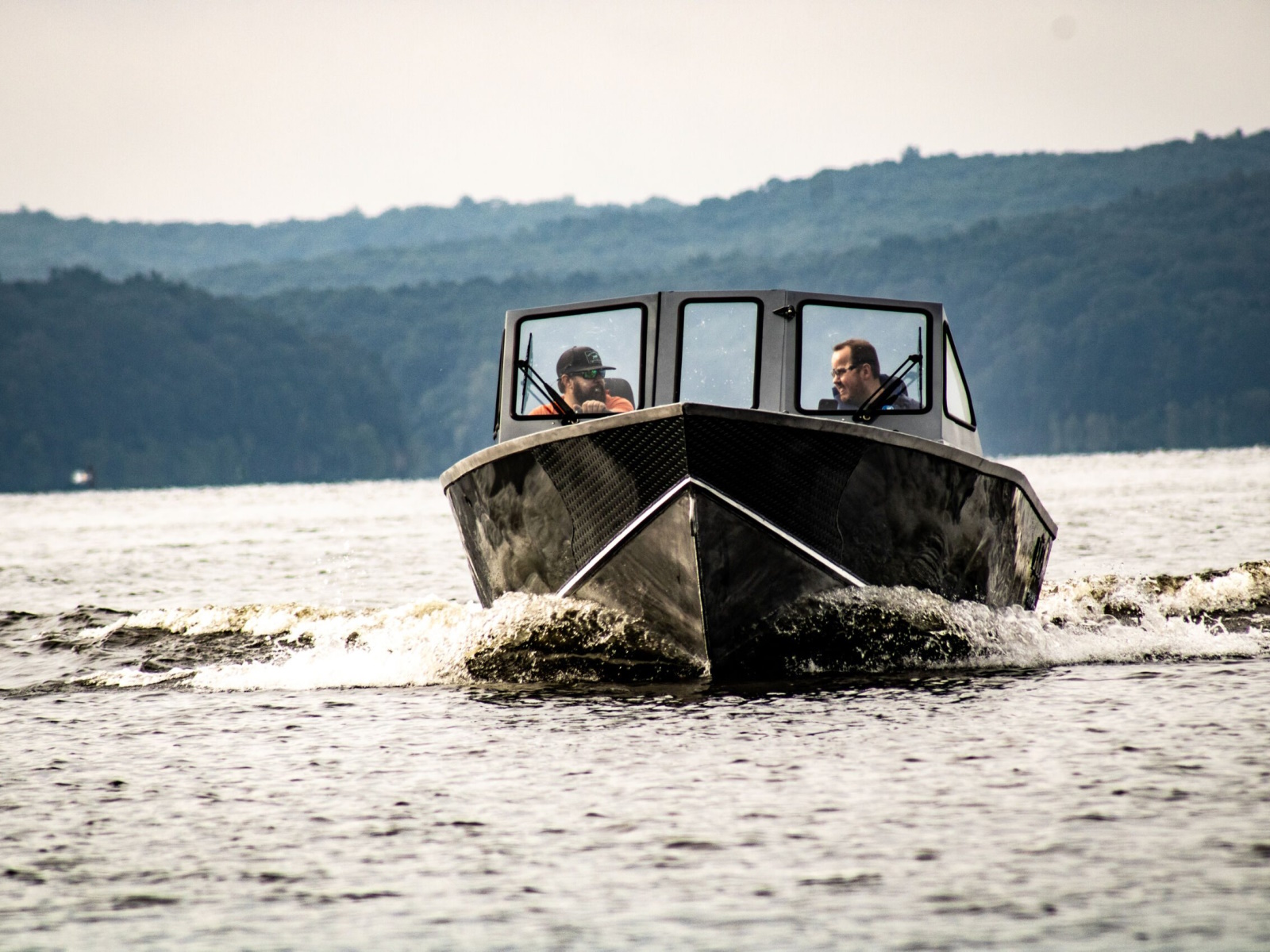

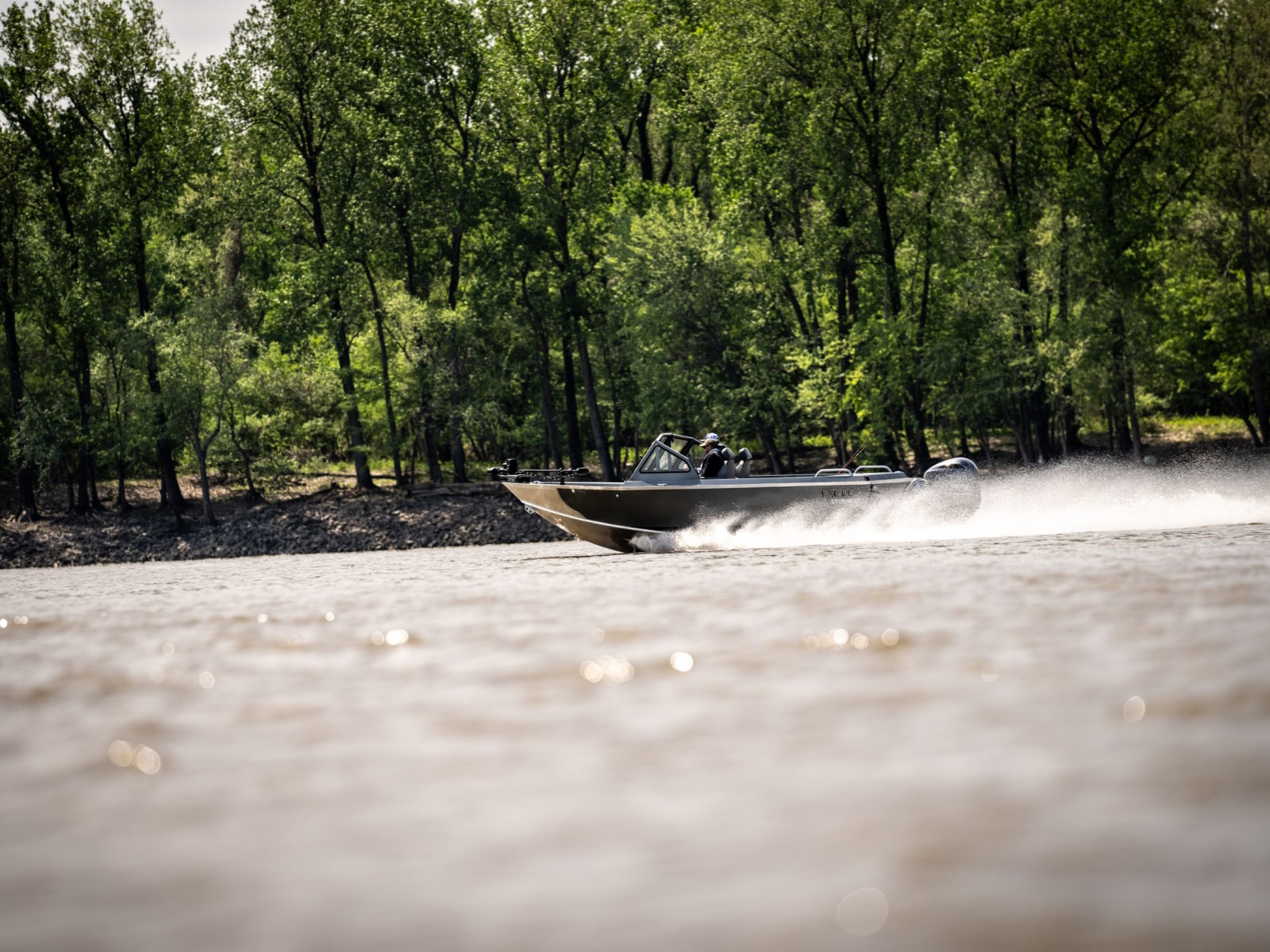

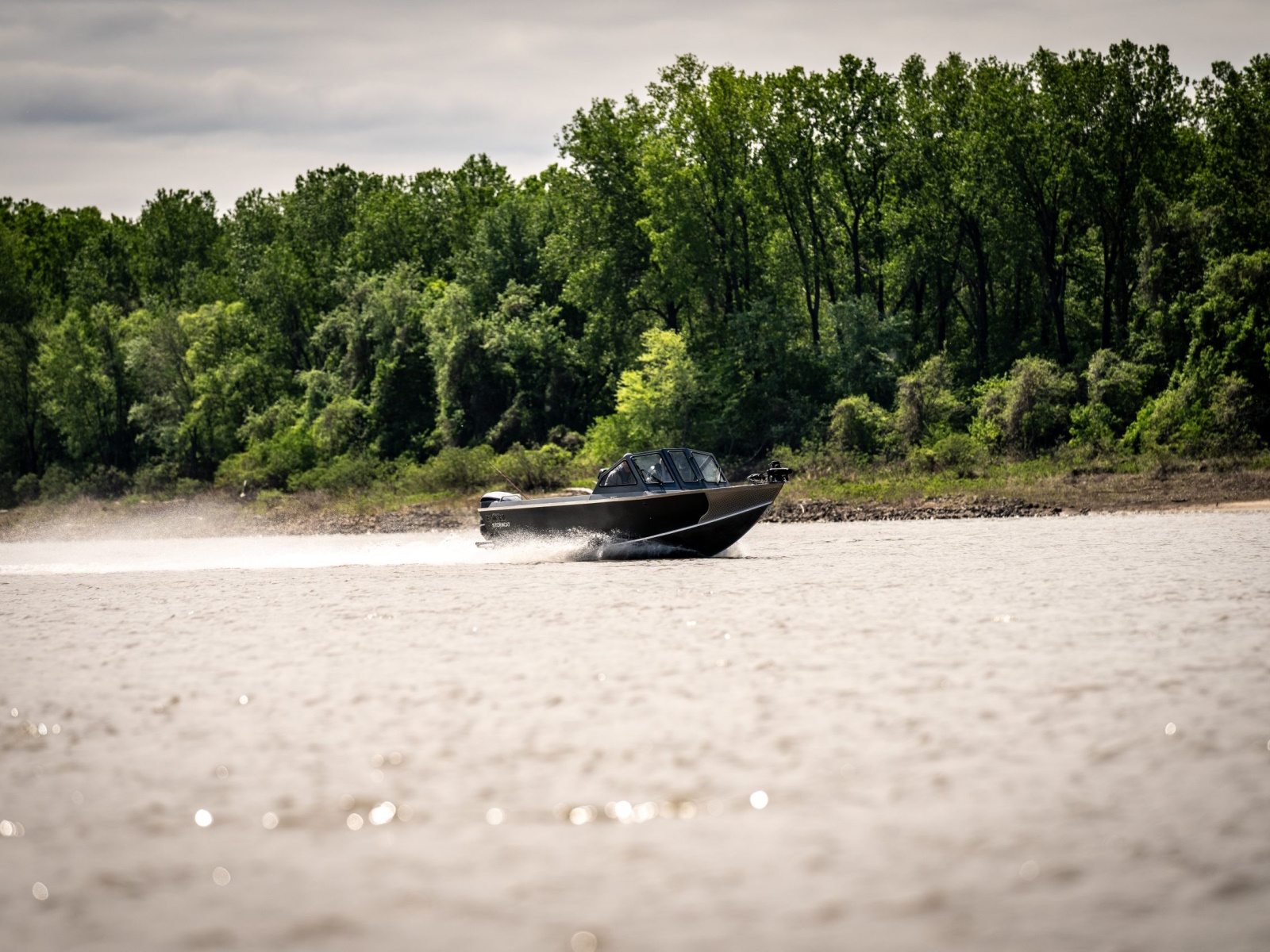

An aggressive hull with 18-degree deadrise allows you to cut through big water at speeds up to 55mph, while maintaining the comfort expected from a world class fishing boat. The Stormcat’s massive 80 gallon livewell, rod lockers and ample storage makes this boat a fishing platform that rivals any on the water. Thick 0.250 gauge bottoms, 0.190-gauge transom, and 0.160 gauge sides & floors make the Stormcat one of the toughest rides on the water. Driver and passenger suspension seats, 70 gallon fuel tank, self-bailing front deck and wash down station are just a few of the standard features of the Stormcat. Rated for a 300HP motor.

Features may include:

Performance:

• Centerline length: 21’
• Overall length: 23’
• Overall length with trailer & motor: 28.5’

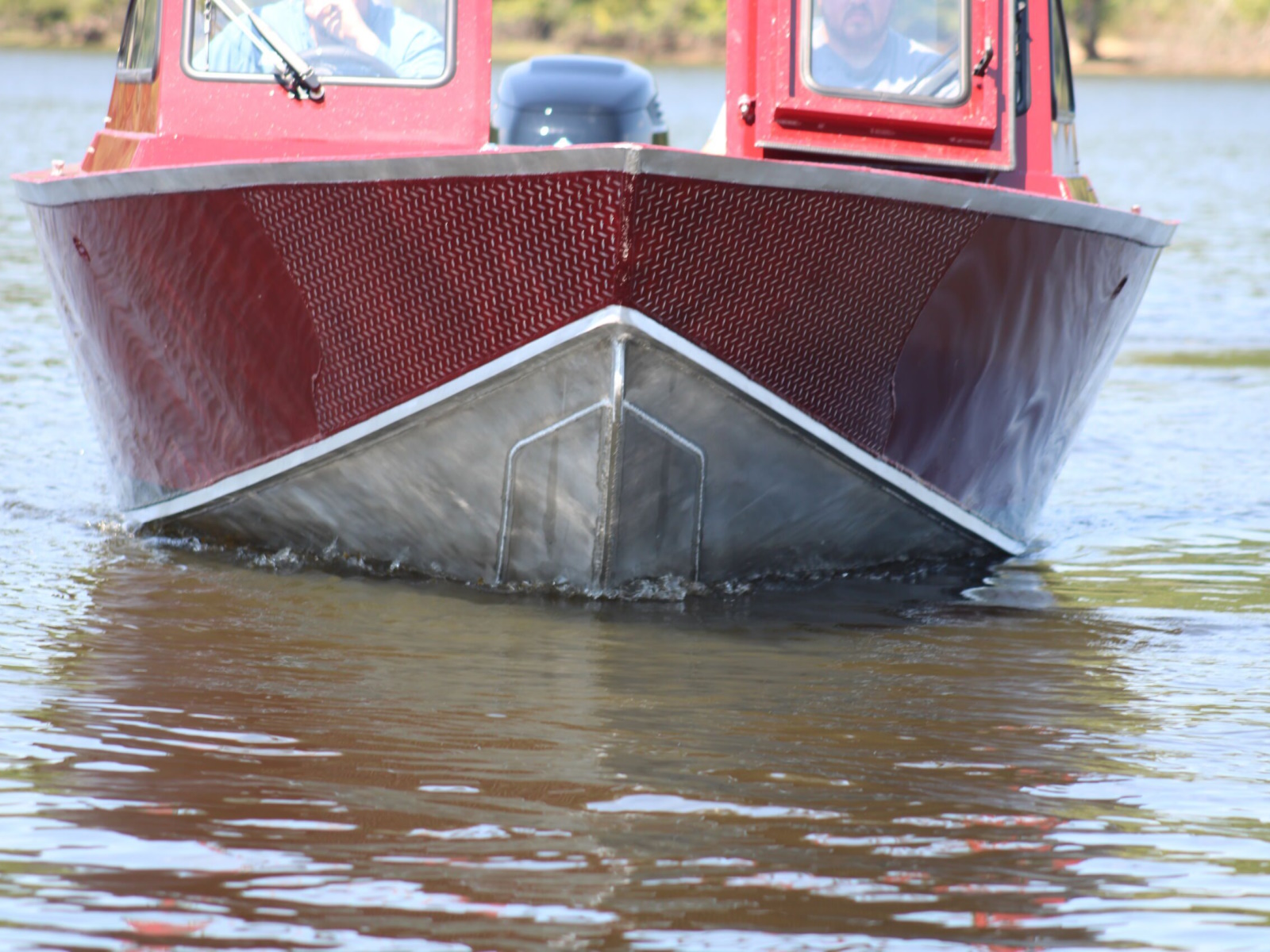

• Deadrise at transom: 18 Deg

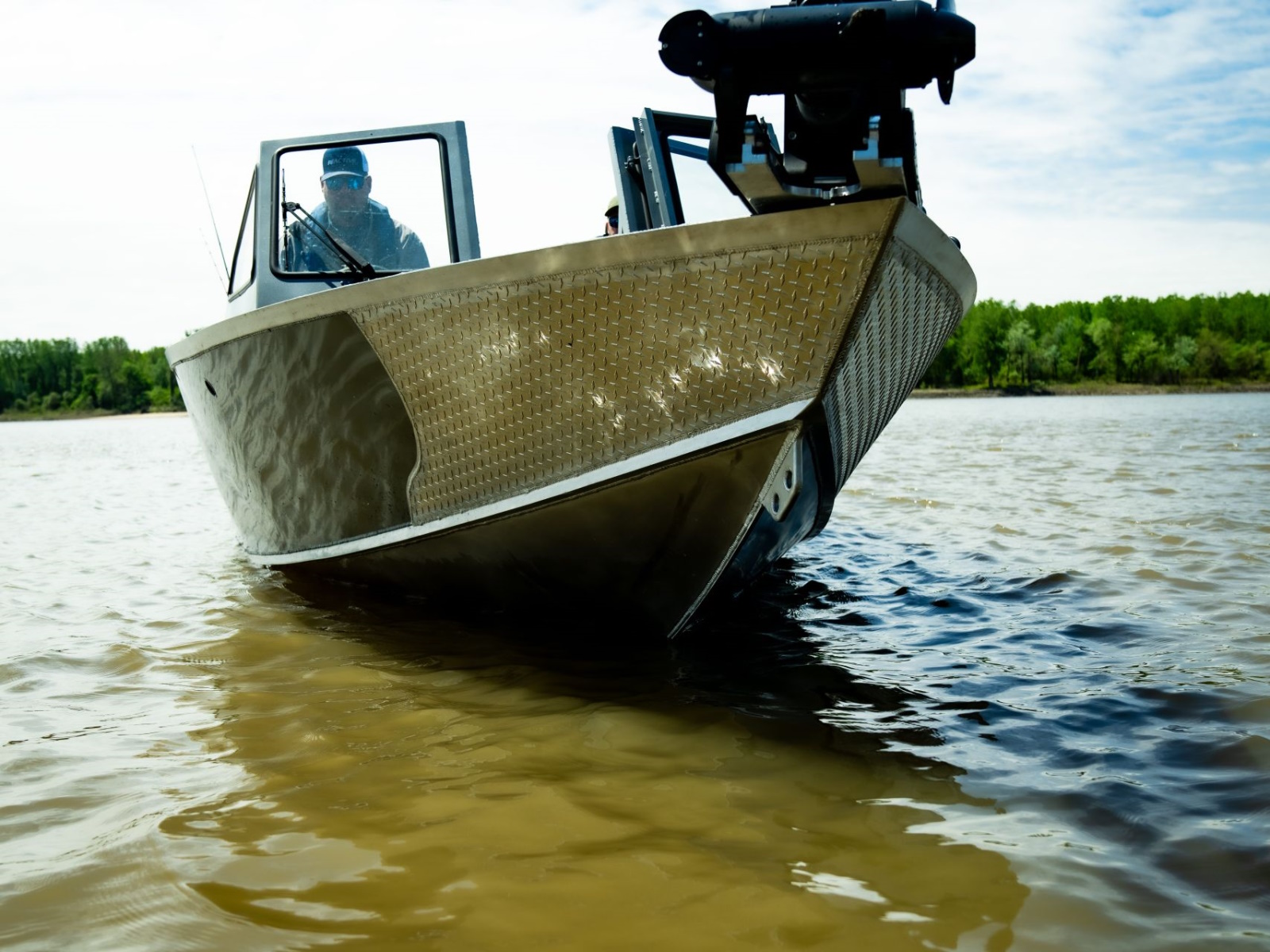

• Deadrise at bow entry: 42 Deg
• Fuel Capacity: 70 Gal
• Hull sides, gunwales, floors: 0.160 5052-H32
• Hull bottom, transom, and offshore bracket: 0.250 5086-H116
• Constructed with heavy aluminum plate and has a limited lifetime hull warranty
• Interior coated with anti-slip polyurethane liner
• Lightship static draft: 18-20” + motor

Standard:

• Seastar Hydraulic Steering
• Anchor Storage with Rope Cleat
• Bow & Trim Nave Light Controls

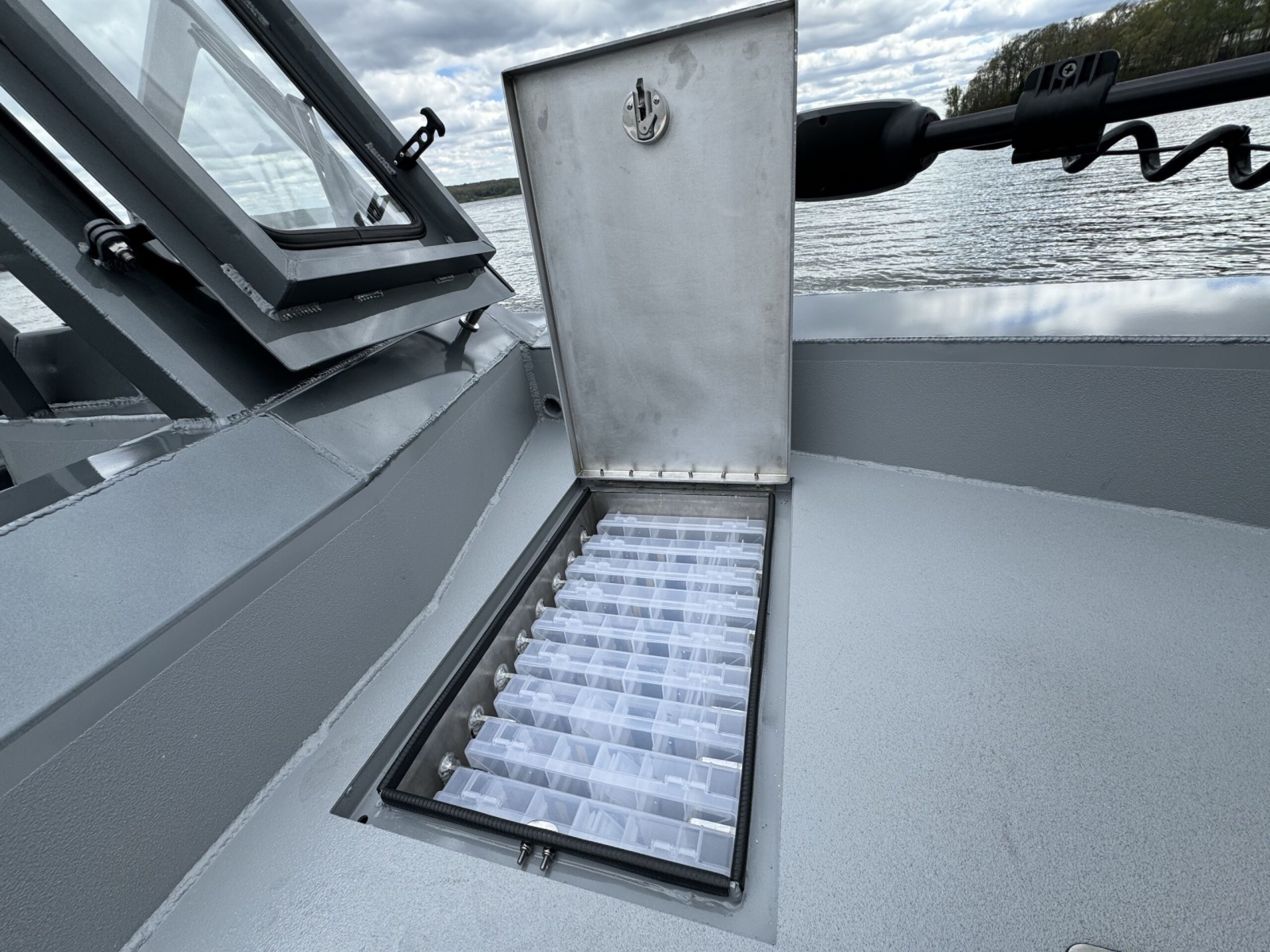

• Front Deck Tackle Storage with 9 Plano Boxes
• Front Deck Semi-Dry Storage Box
• Self-Bailing Front Deck
• Front Deck Seat Base (2-3/8 Dia.)
• Super Duty Integrated Bow Eye

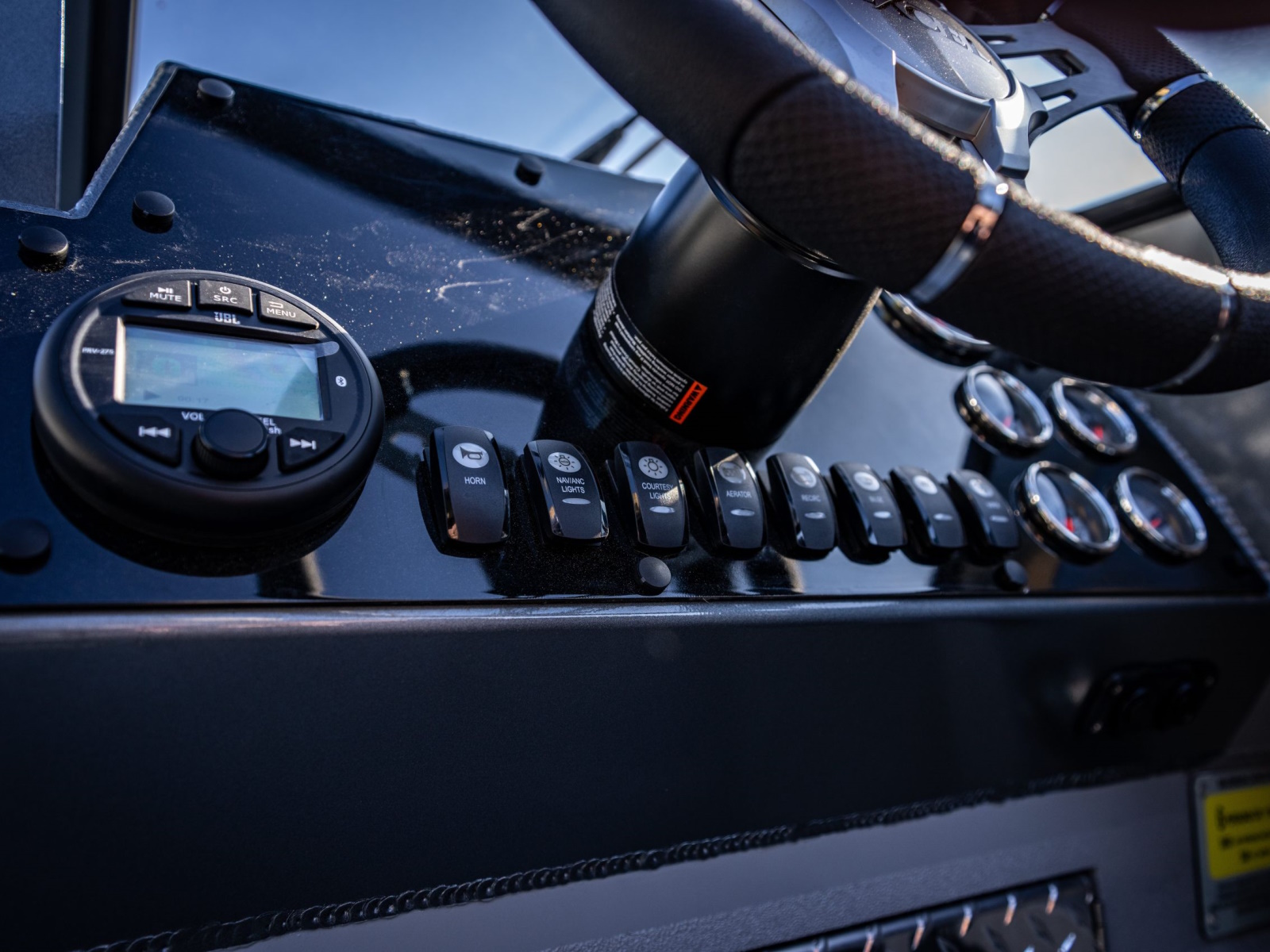

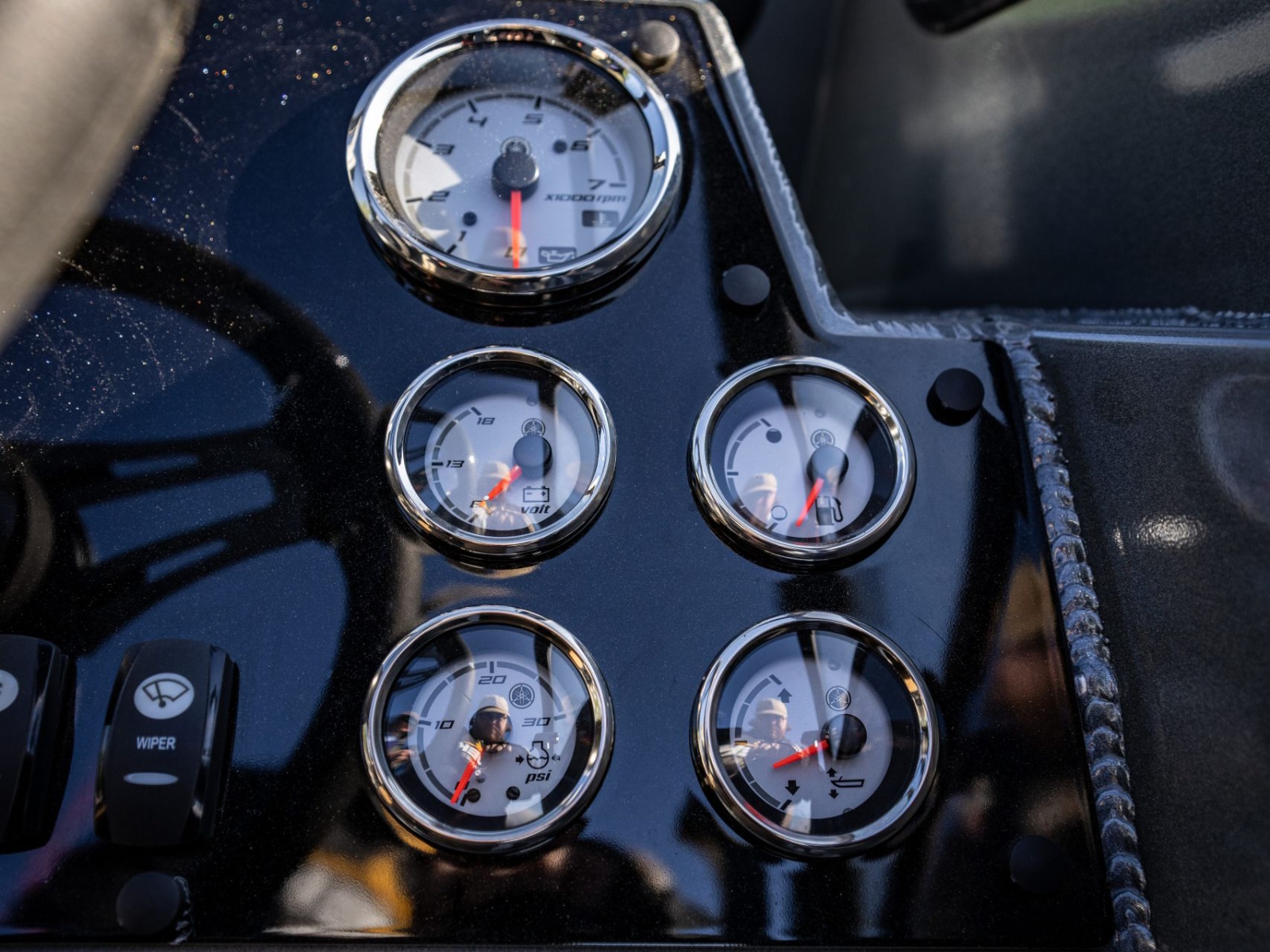

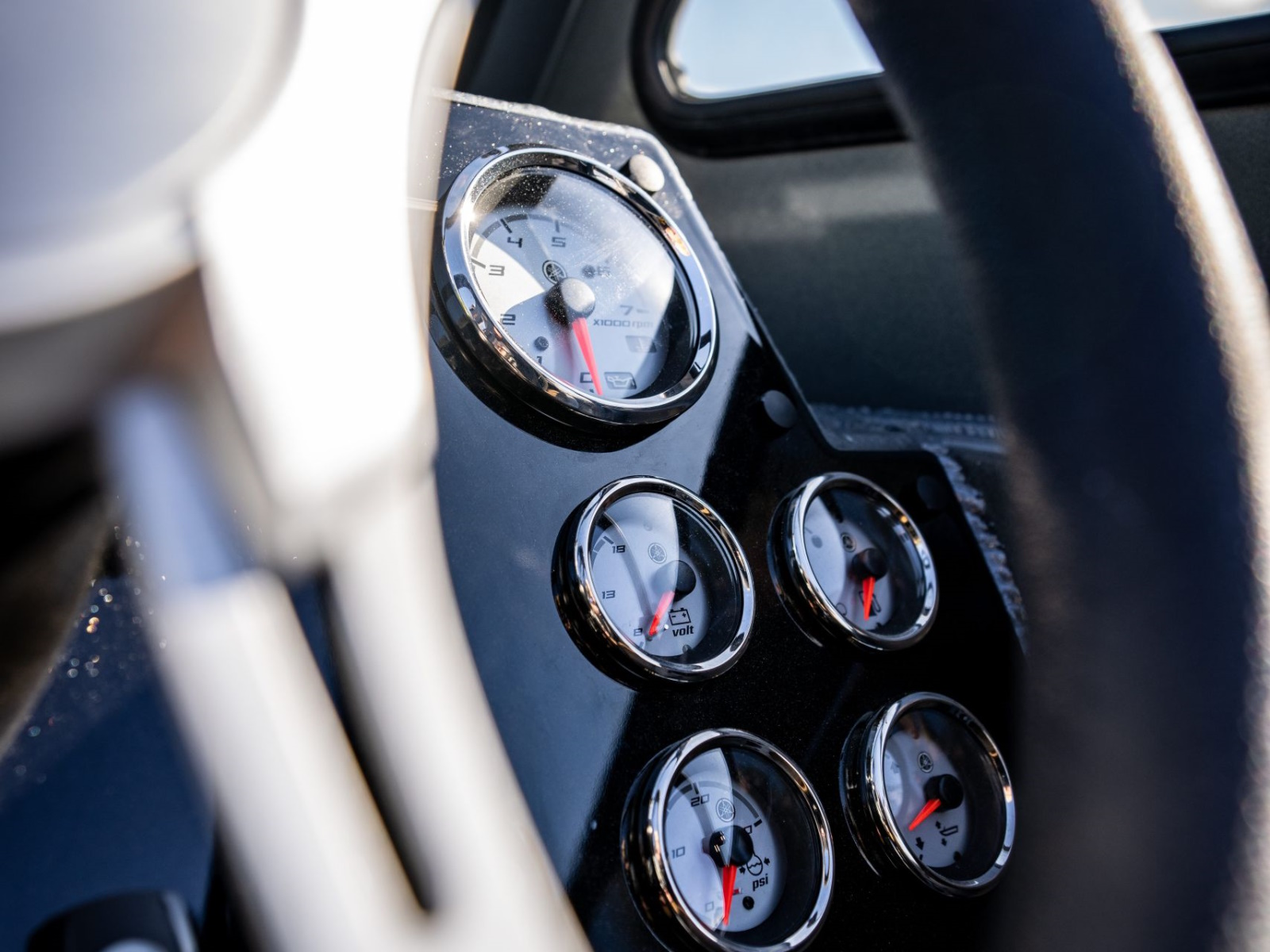

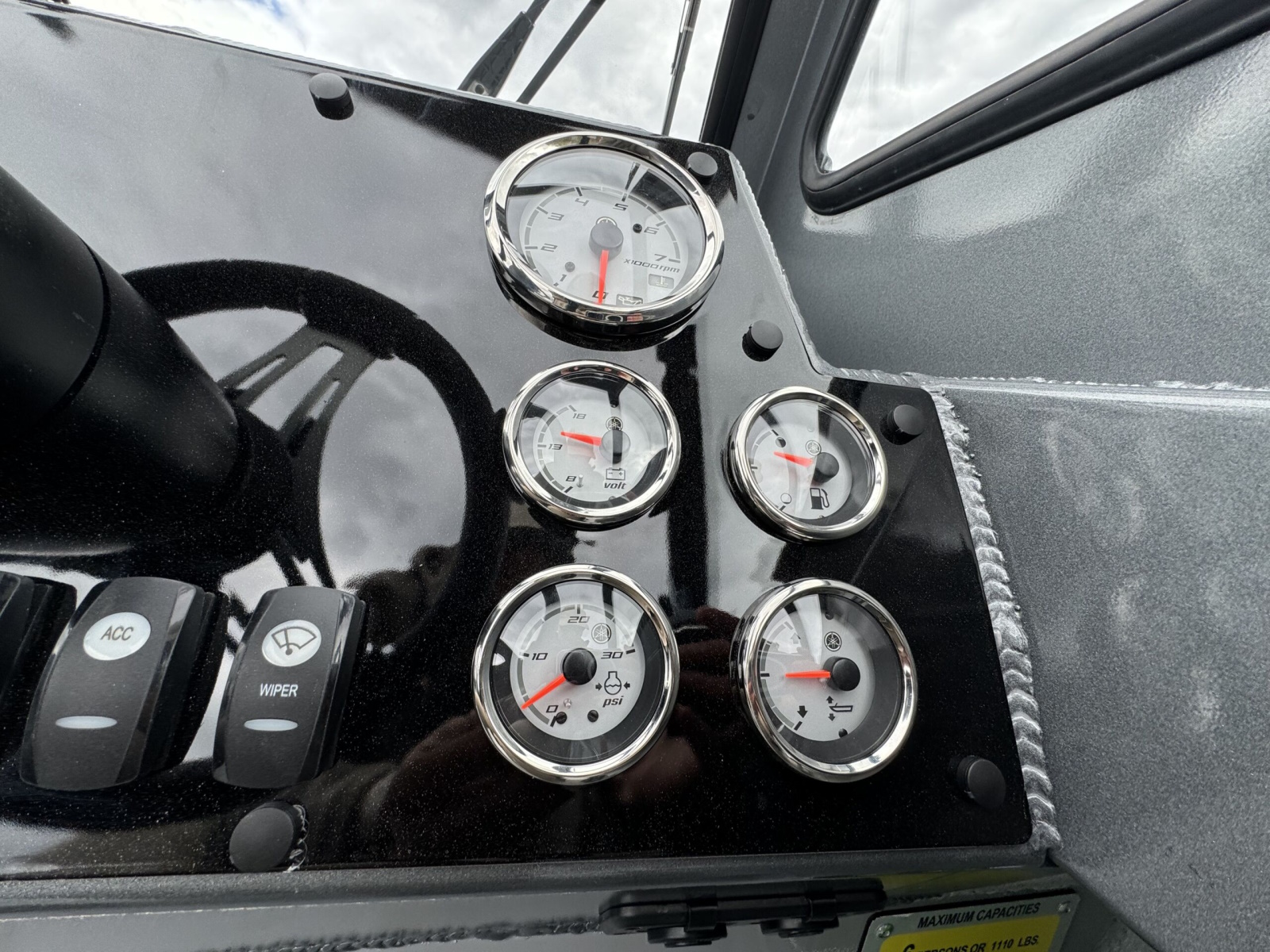

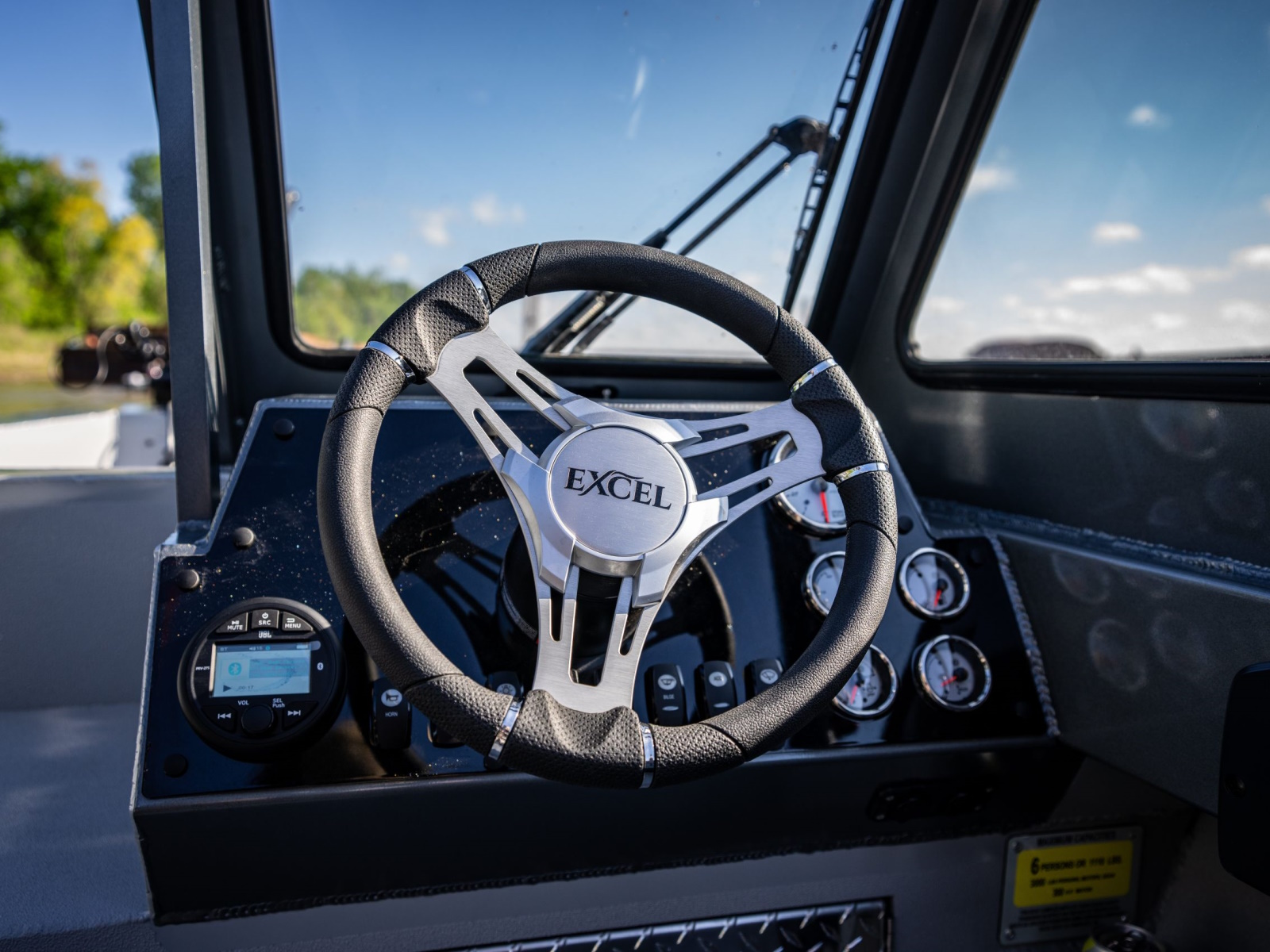

• Gauges & Rocker Switches – Fuel, RPM, Voltage, Water Pressure, Trim
• 70 Gal Fuel Capacity (Belly Tank)
• Low Dash Design for Clear View Fish Finder Mounting
• Driver Wiper with Dash Controls
• 12v/USB (Driver Dash) – USB/USBC(Passenger Dash)
• Large Under-Dash Storage (Lockable)
• 80 Gal Livewell/20 Gal Baitwell w/ Dual 1200 GPH Aerators & 1200GPH Recirc
• Three 1200 GPH auto bilge pumps

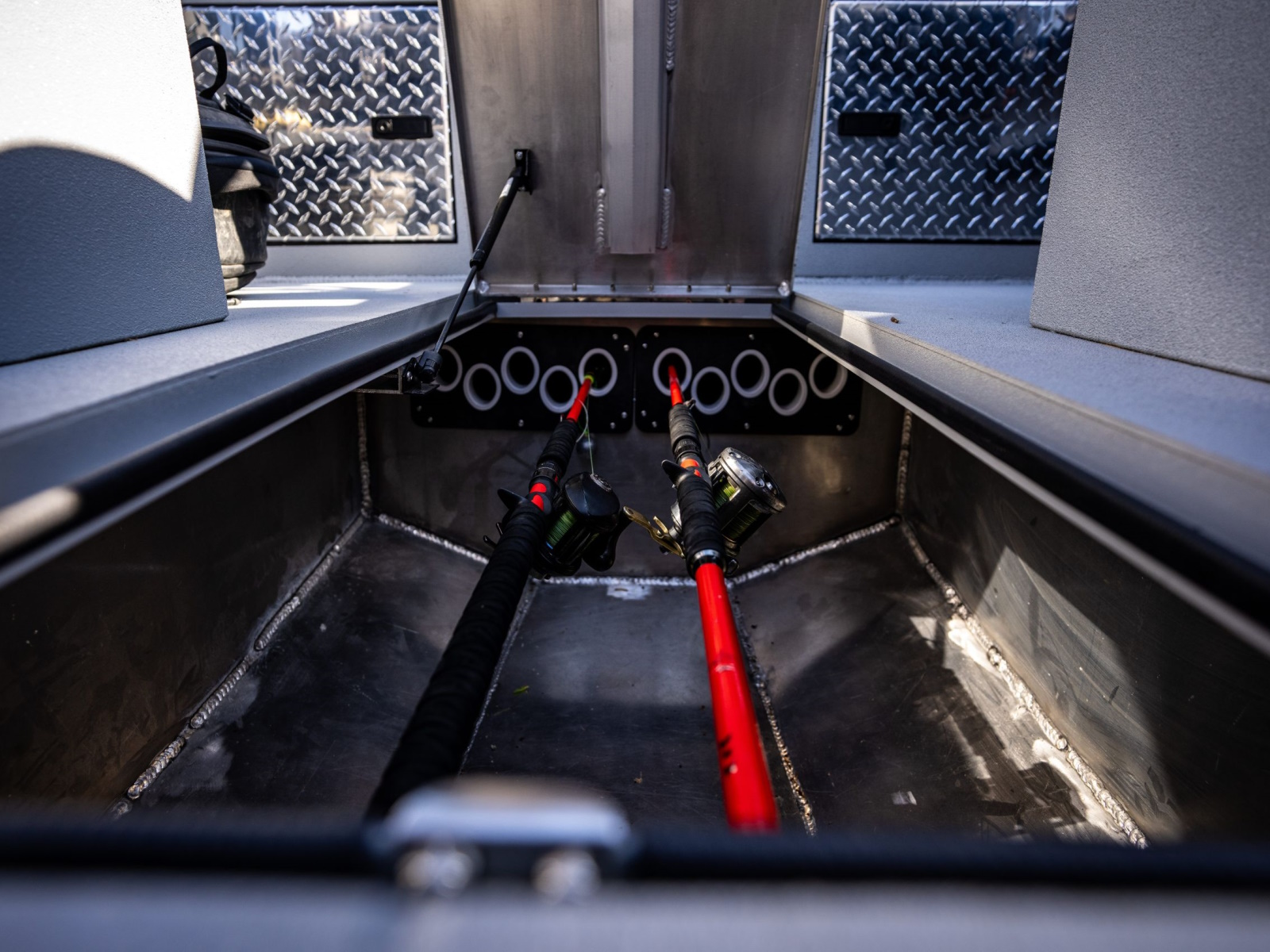

• In-Floor Rod Storage Compartment for 10 Rods – 8′ (Lockable)
• Side Gunwale Trays with Sinker Storage Compartments
• Wash down Pump and Hose
• Three Cup Holders
• Fuel Water Separator
• 5 Battery Trays
• Master Battery Cut Off Switch (Easy Access Side Mounted – rear)

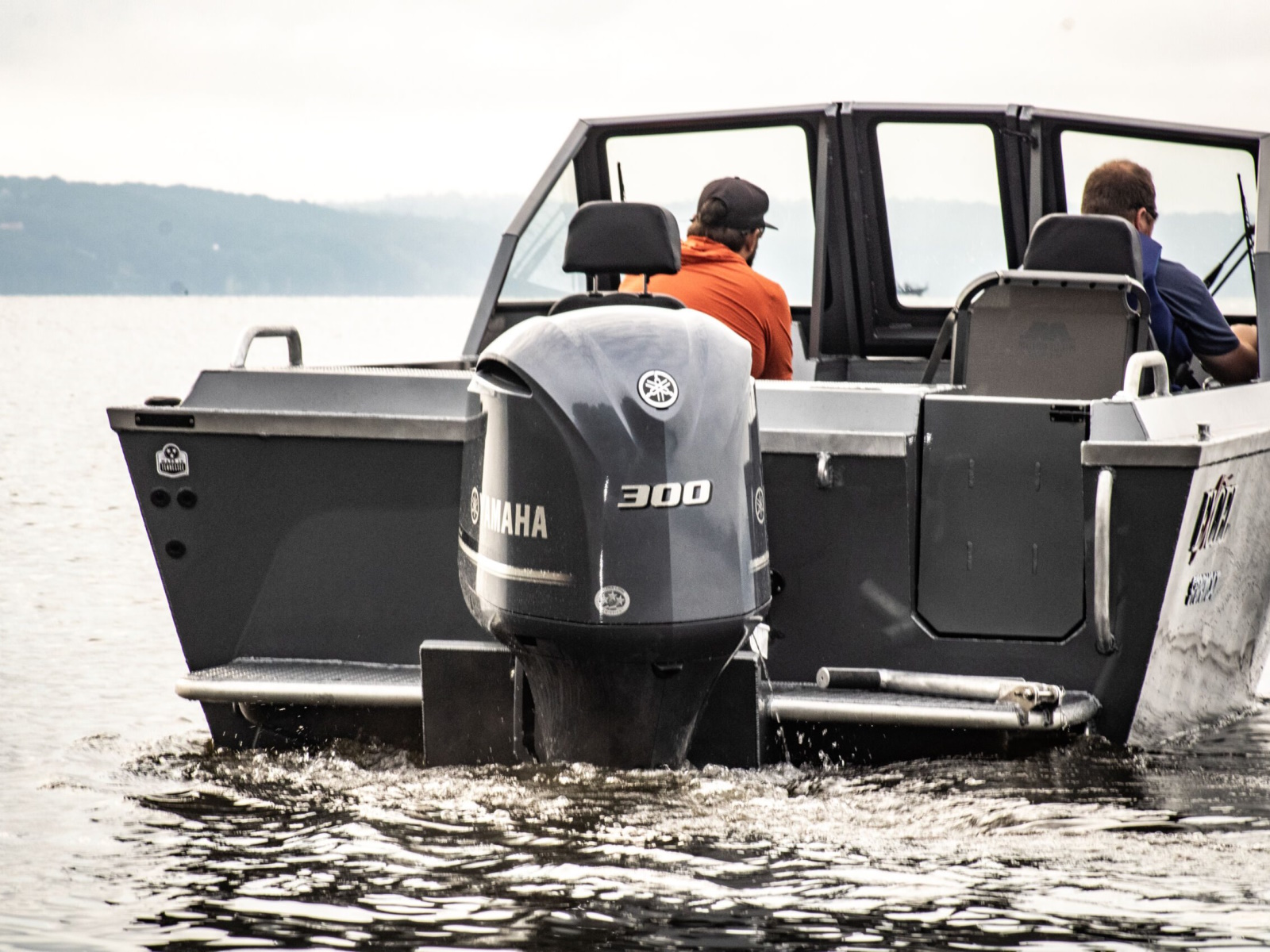

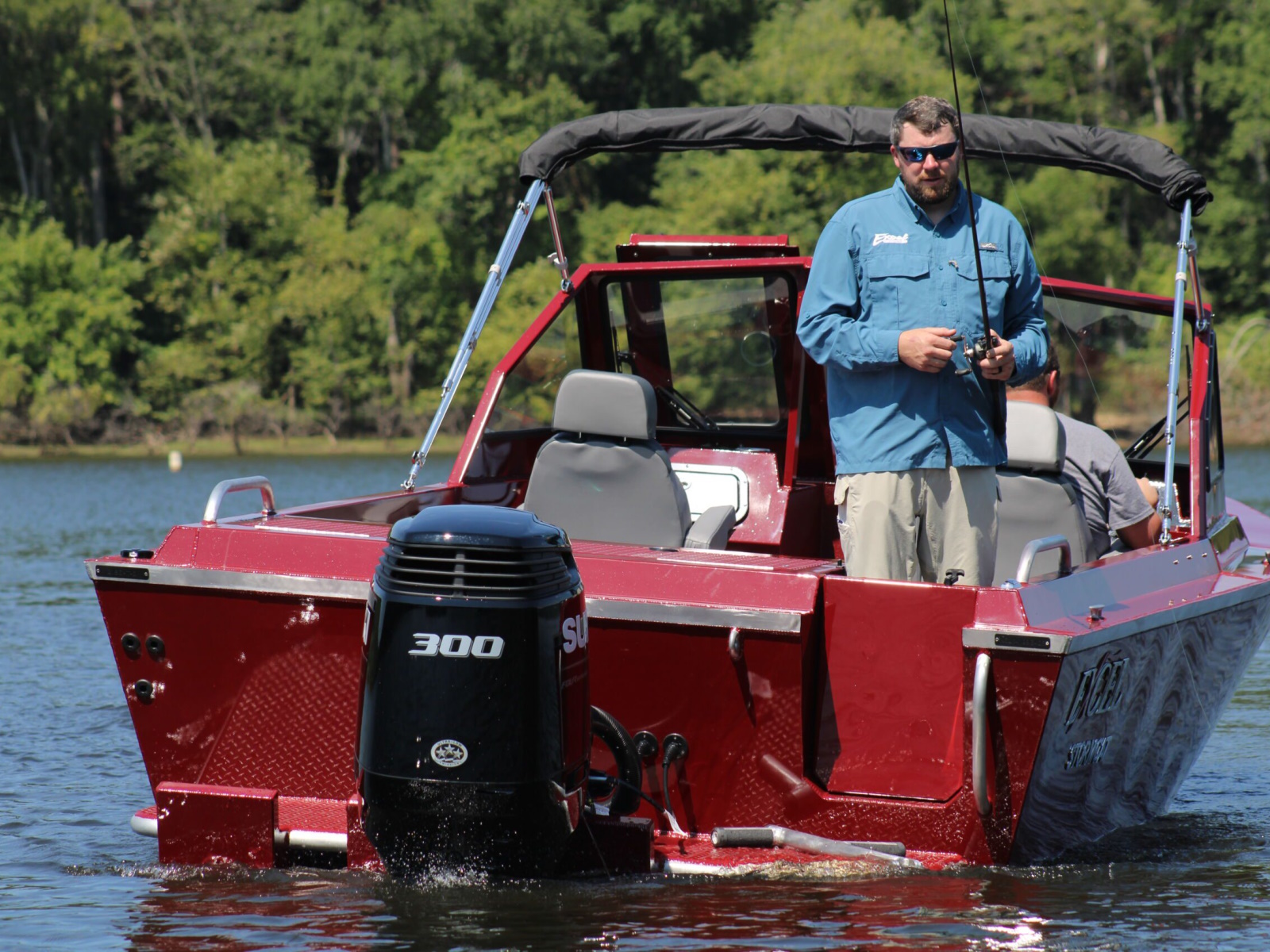

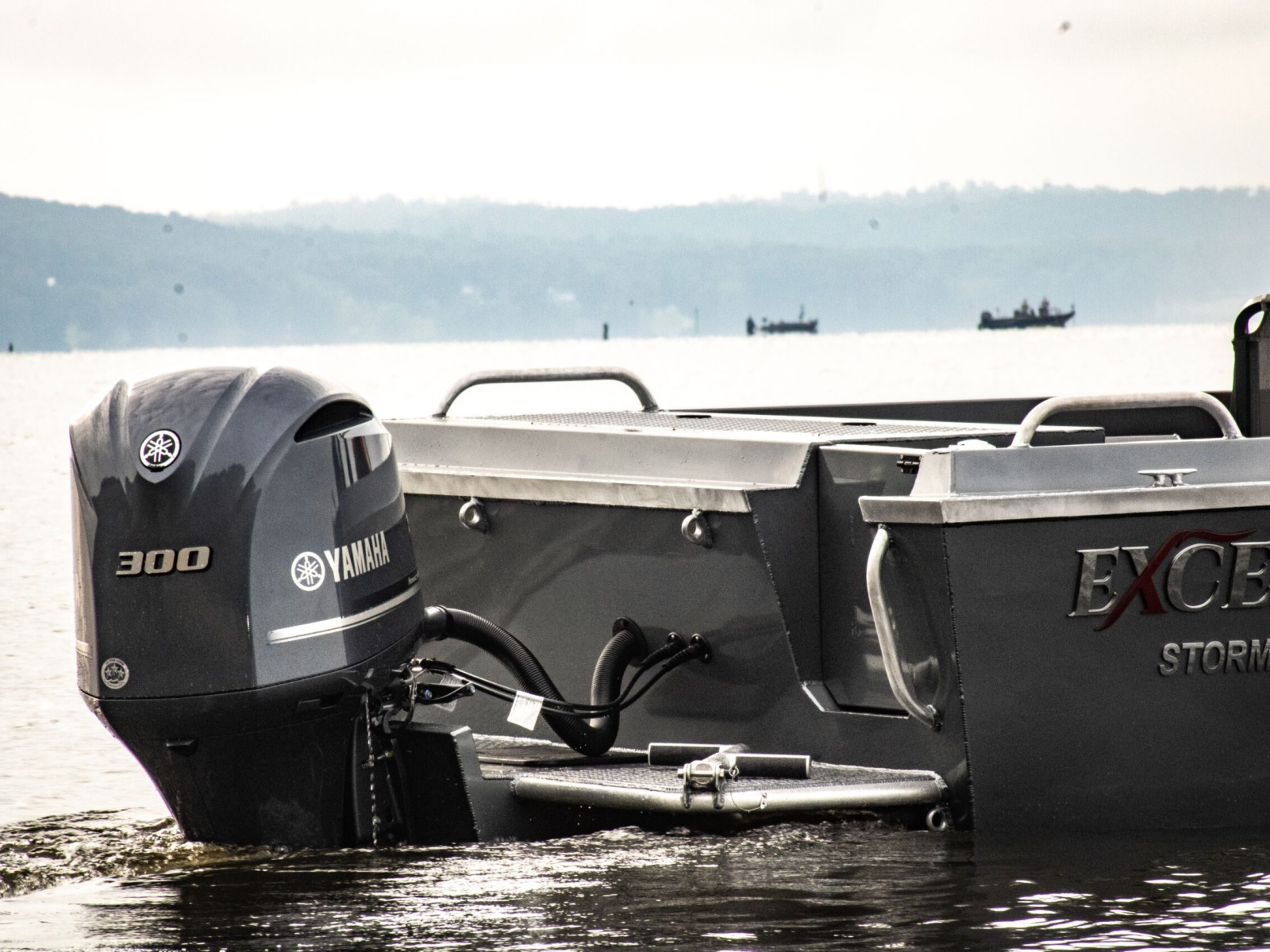

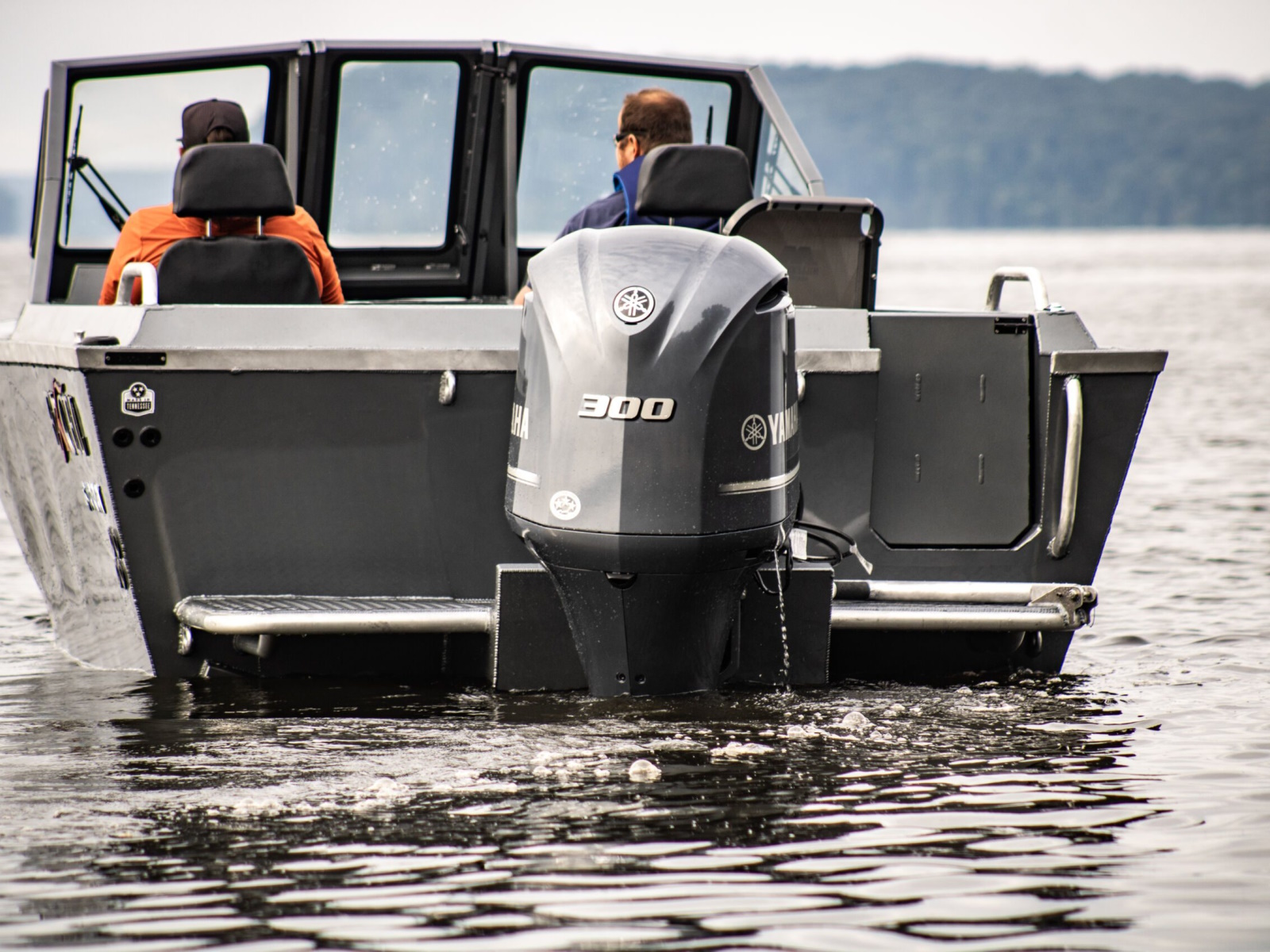

• Swim Deck/Offshore Bracket

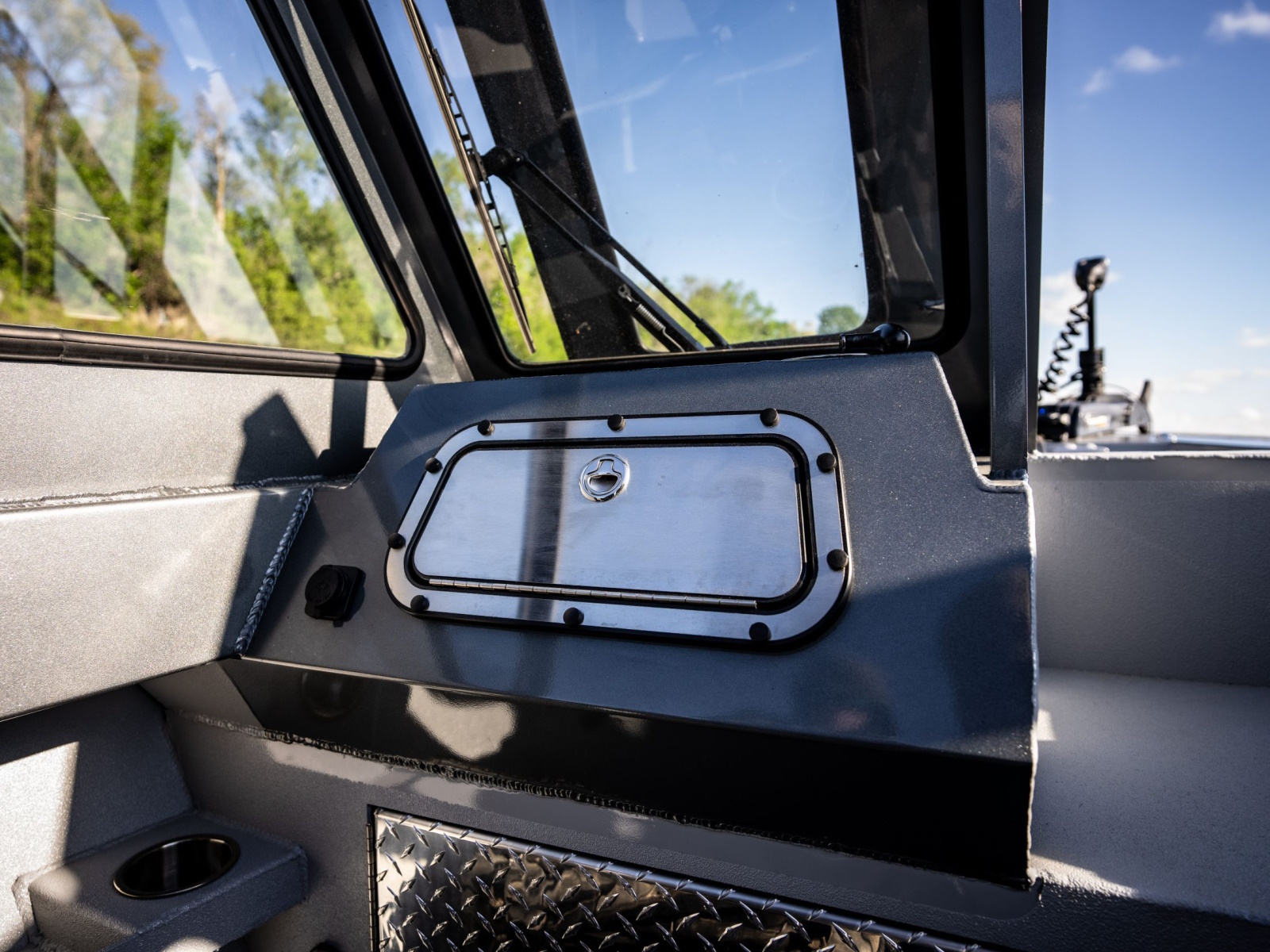

• Large Lighted Glove Compartment

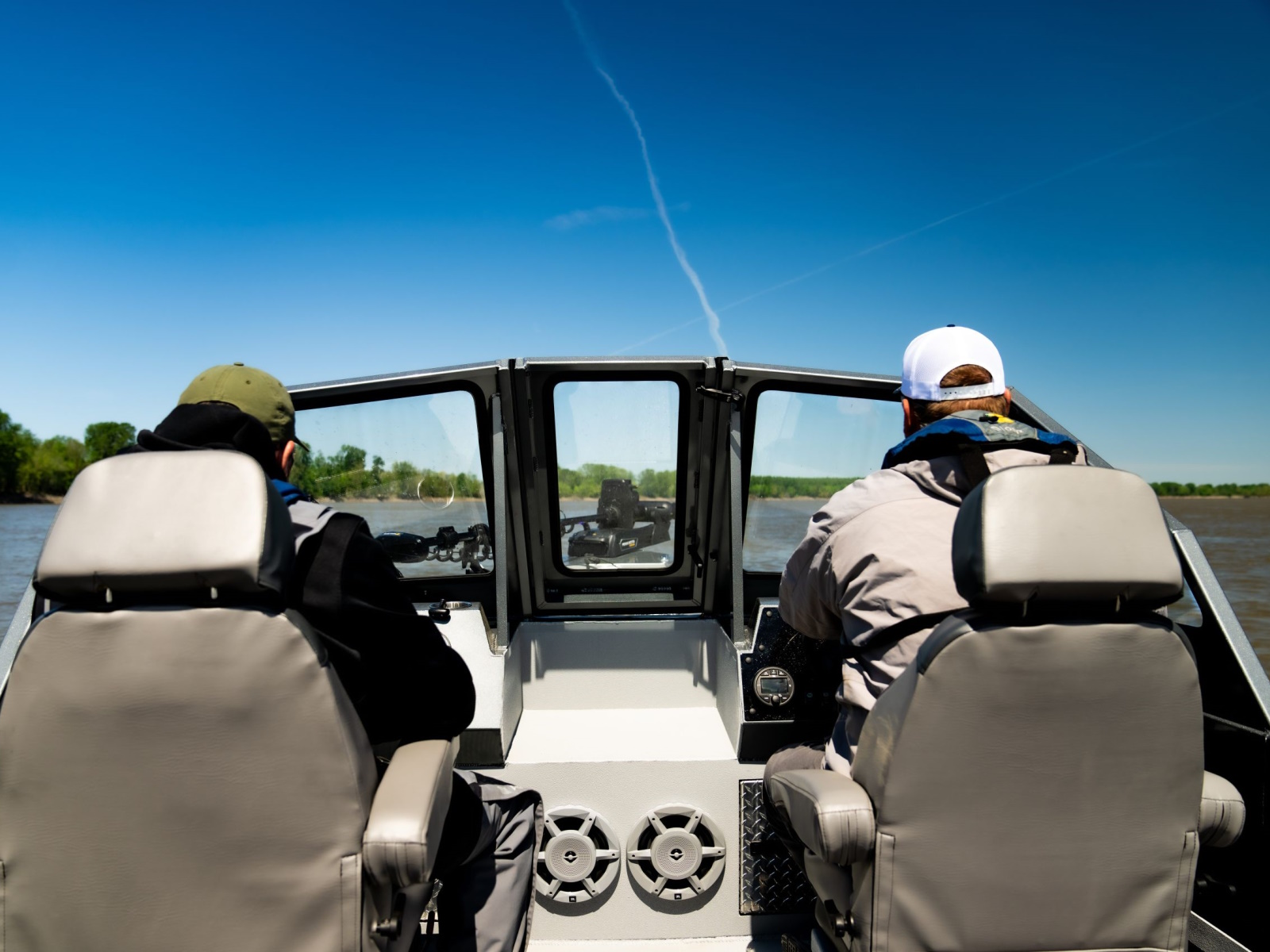

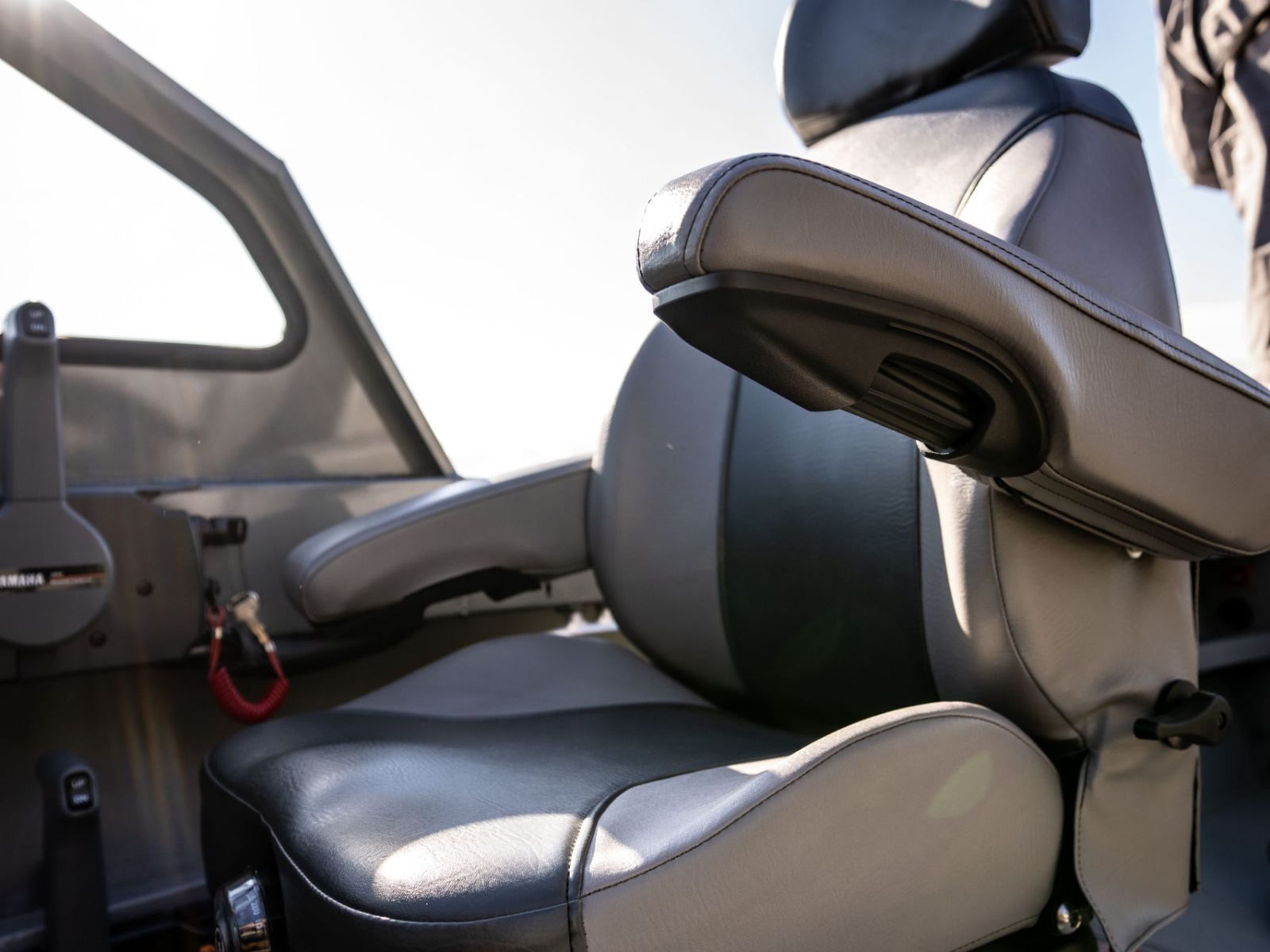

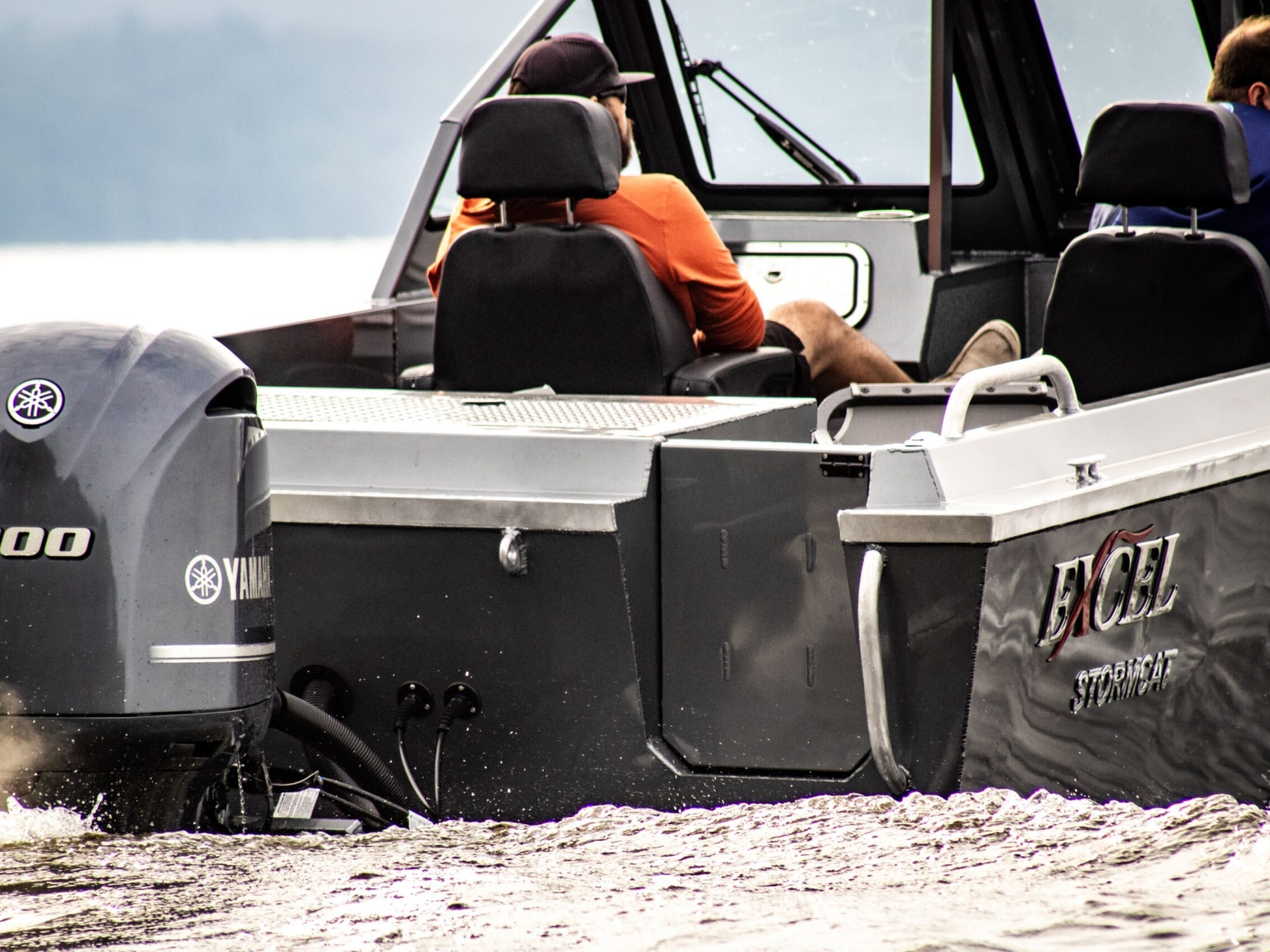

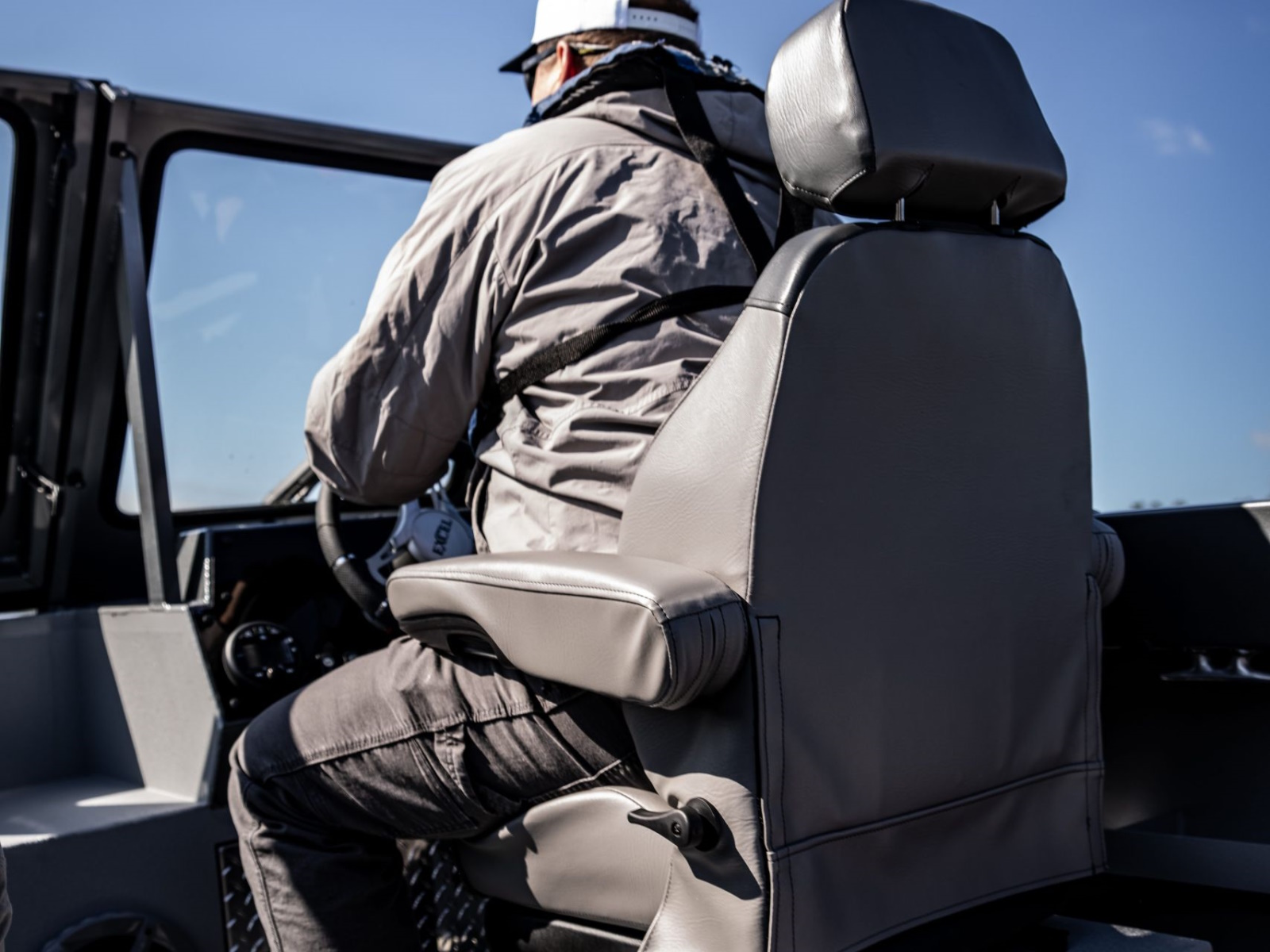

• Driver and Passenger Adjustable Suspension Seats Mounted on 18″X18″ Storage Boxes with Slides, Swivels, Recline & Headrest
• Walk-Through Transom Door
• Transport Cover
• Brushed lifting eyes, rails, extrusions and unpainted surfaces

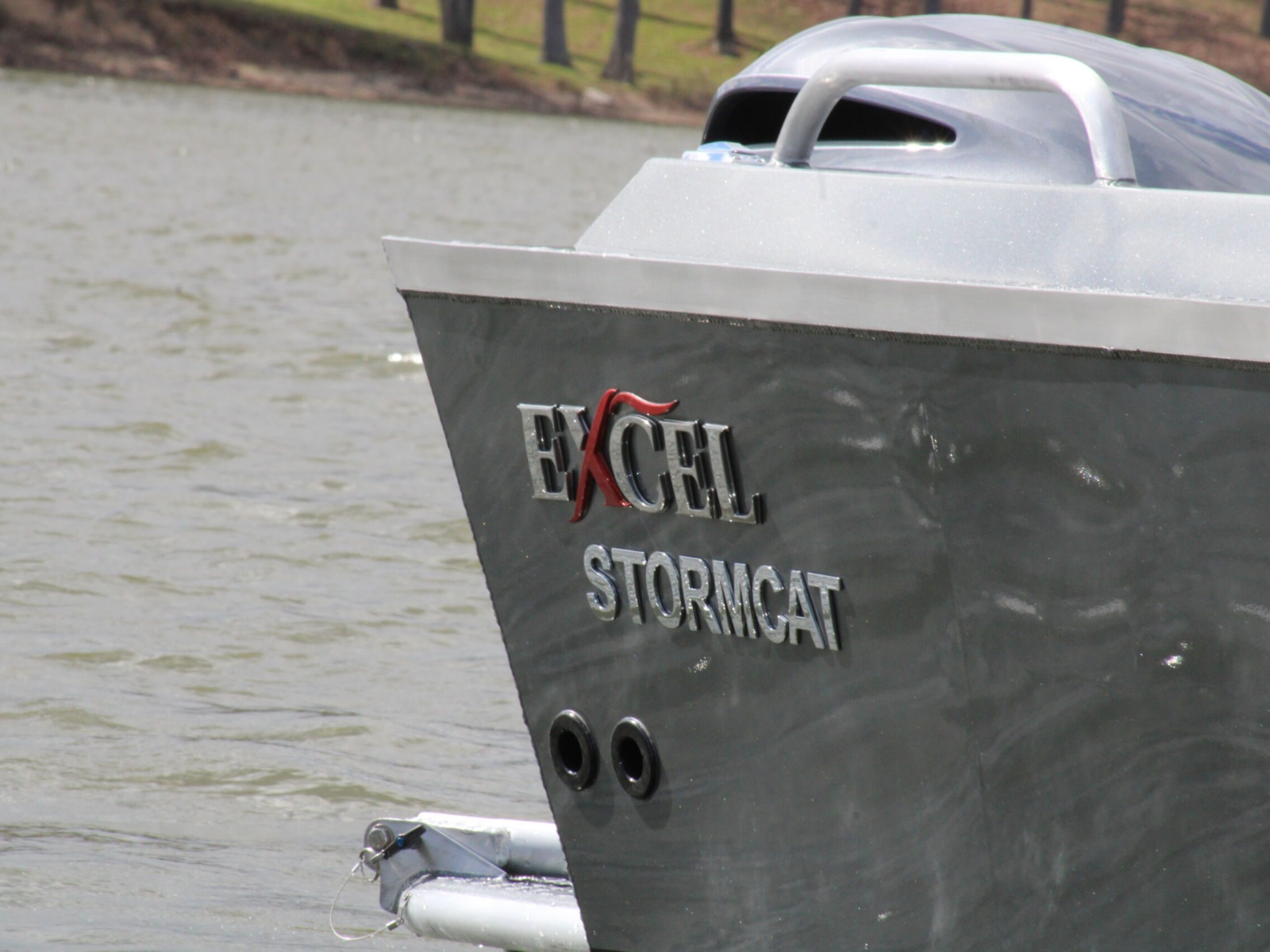

• Stormcat Chrome Graphics Package
• 0.190″ 5086 Al. Transom & Offshore Bracket

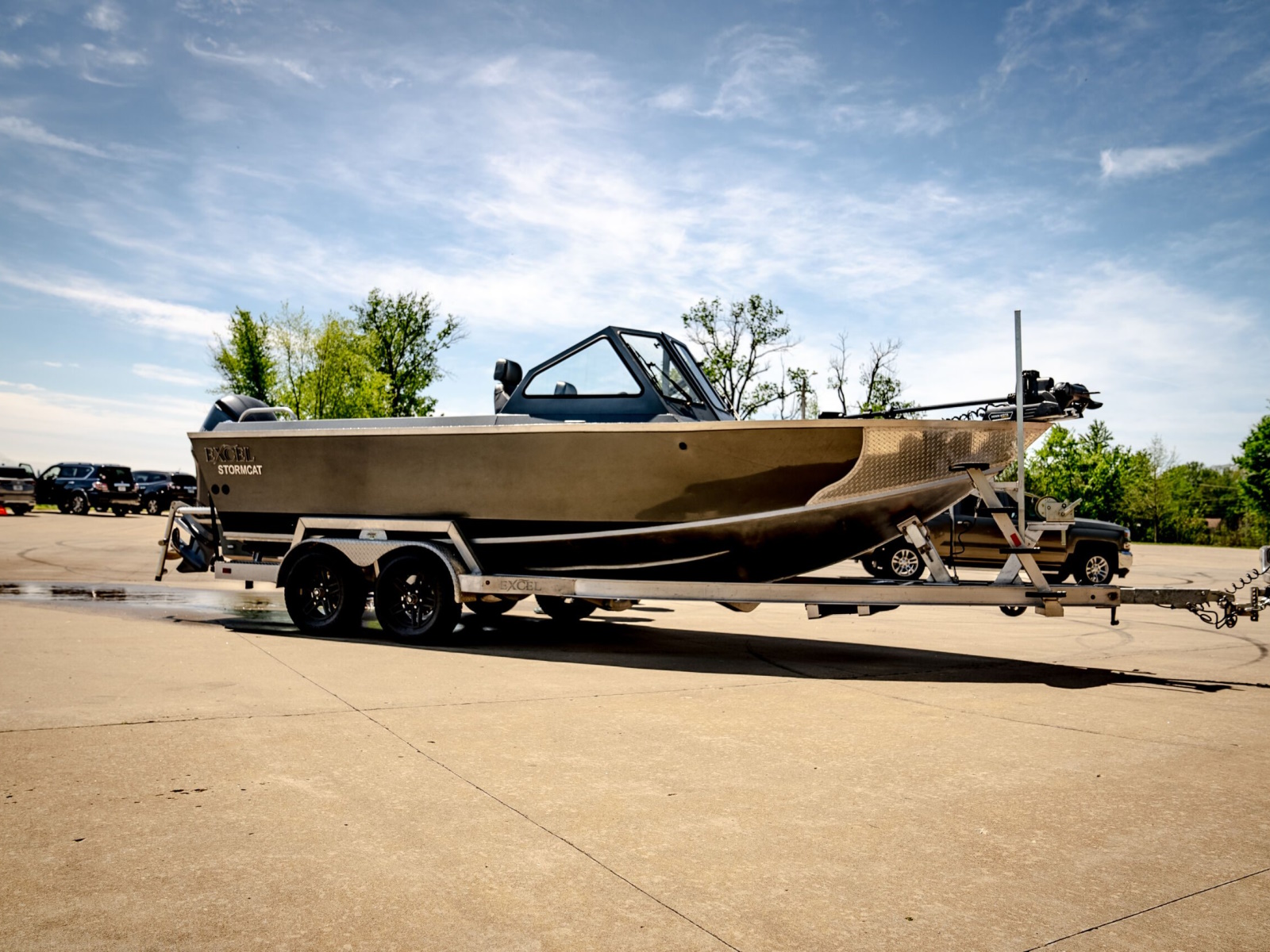

Trailer Standard:

• EZ Loader Tandem I-beam w/ Alloy Wheels
• Backlit Laser Cut Steps
• 4-Wheel Disc Brakes
• Heavy Duty Winch – 2 Speed
• LED Tail Lights w/ Backup & 7-way Plug
• Jack Stand W/ 8″ Wheel
• V-Black Bow Guide

Options:

• Motor Options:

  • Mercury, Yamaha, Suzuki Engines – 150-300 hp
  • Kicker Motor (Mercury, Yamaha, Suzuki)
  • Yamaha Kicker – Optional Sink Hot Water System
  • Mercury/Yamaha/Suzuki Steeringlink

• Paint Options

  • Solid Color – Interior (Recommended: Stingray Silver)
  • Two Tone Upgrade
  • Tri Tone Upgrade
  • Lower Side Stripe
  • Metallic Clear Coat
  • Camo Two Tone (Camo Exterior w/ Khaki Interior)
  • Primary and Kicker Motor Camo

• Electrical/Lighting Options

  • LED Underwater Lights (Red, Green, Blue White or purple)
  • LED Interior Light Package – (Red, Green Blue, White or Purple)
  • 12″x12″ LENCO Electric/Hydraulic Trim Tabs w/ Dash Controls
  • Wet Sounds® Stereo with Two 8″ Speakers
  • 2 or 3 Bank Battery Charger (at starter battery or trolling motor)
  • Passenger Windshield Wiper

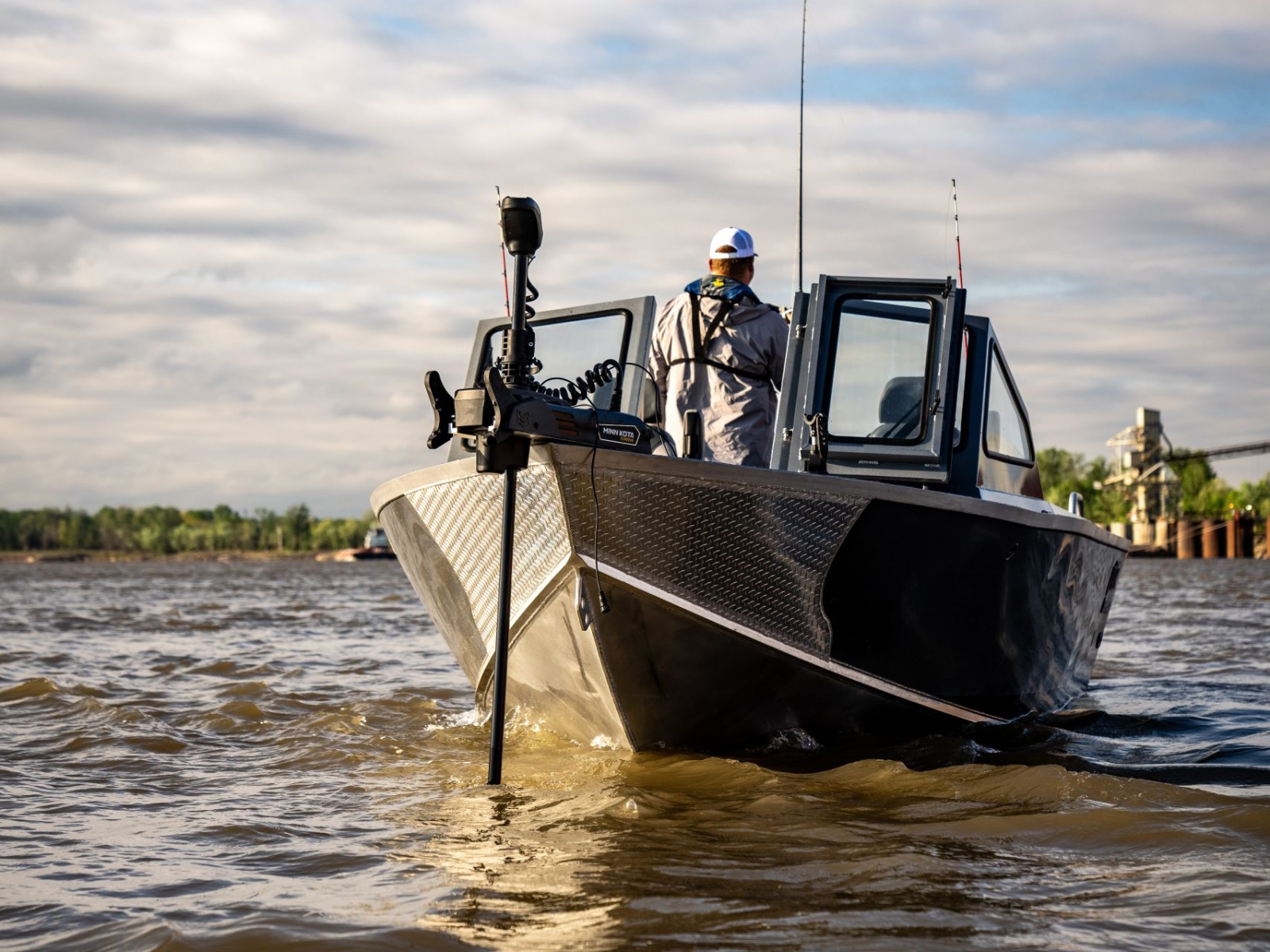

  • 36V 72″ Trolling Motors
  • Bow or Dash Gimbal Mounted Graphs

• Passenger Seat Options:

  • Driver/Passenger I3MM Suspension Seats
  • Front Deck Seat – Millennium Fold Down (On Pedestal with Swivel)
  • Front Deck Seat – Millennium Casting Seat (on Pedestal with Swivel)
  • Rear Seats – River Master Fixed Arm (On Pedestal with Swivel
  • Rear Seats – Millennium Folding Seats (On Pedestal with Swivel)
  • 20″ Seatbox With Cushion & Backrest
  • Rear Seatbase Only
  • Thetford-365® Porta-Potty

• Canvas Options:

  • Cockpit Mooring Cover with Storage Bag – Black

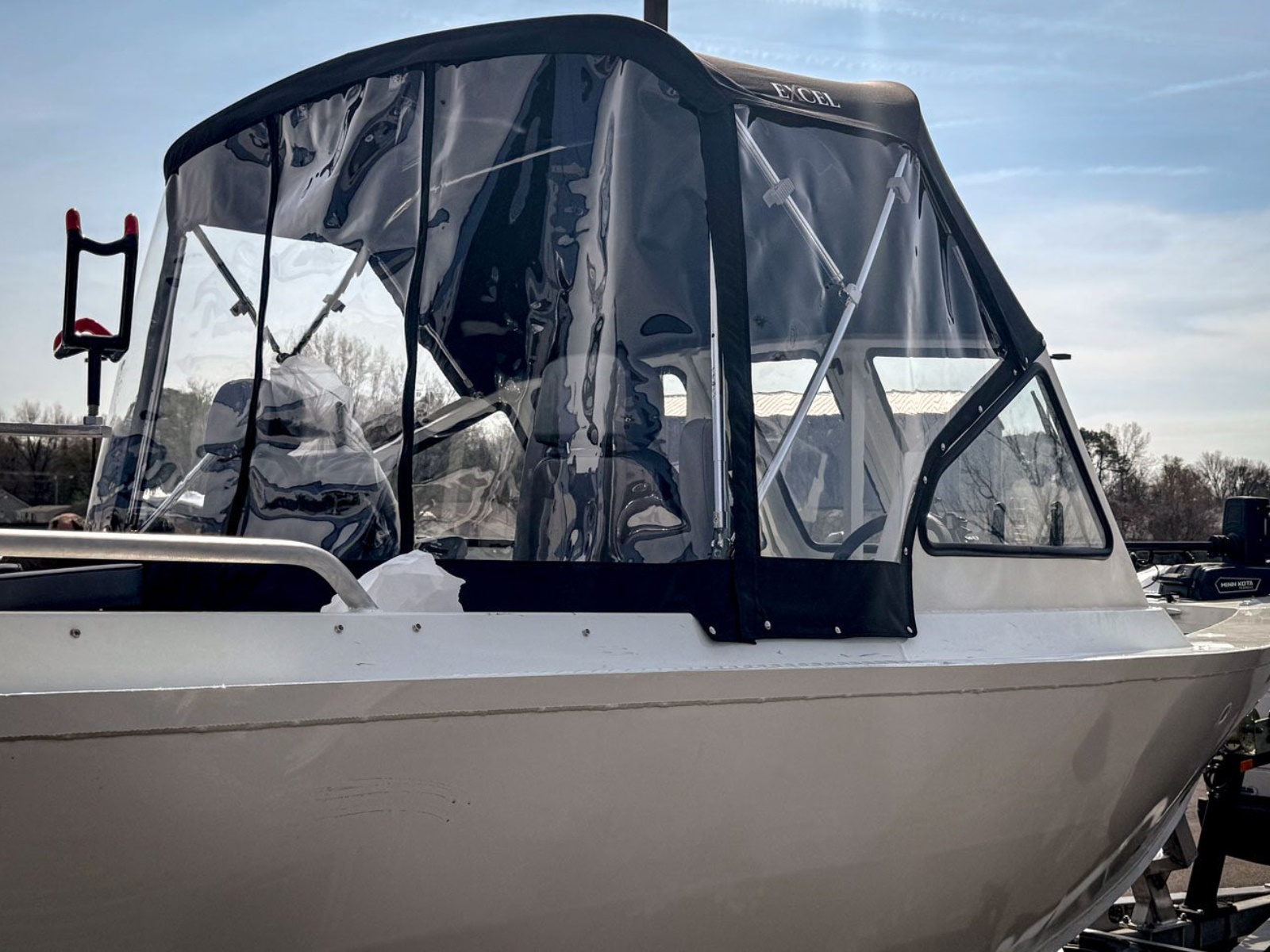

  • Standard Cockpit Bimini Top Set (Top, Sides & Drop Curtains, Storage Bag)
  • Extended Cockpit Bimini Top Set (Top, Sides & Drop Curtains, Storage Bag)

• Aluminum & Decking Options:

  • Painted Tread Plate Package (Anchor Guard, Doors, Lids, Swimdeck)
  • Aquatraction Decking
  • Transom/Offshore Bracket Upgrade to 0.250 5086 Aluminum
  • Welded 2 Step Ladder
  • Welded Kicker Bracket
  • Welded Beaching Plates
  • Welded 24″ Stern Rails (2)
  • Welded Downrigger Brackets (2)

• Trailer Options:

  • Alum. I-Beam Trailer – Upgrade
  • 4 Step Boarding Ladder
  • Alloy Spare Tire WithBelly Mount
  • Ratchet Tie Downs (Non Salt Water Use)
